Three phase wind turbine wiring diagrams



Click on an item above for more specific information

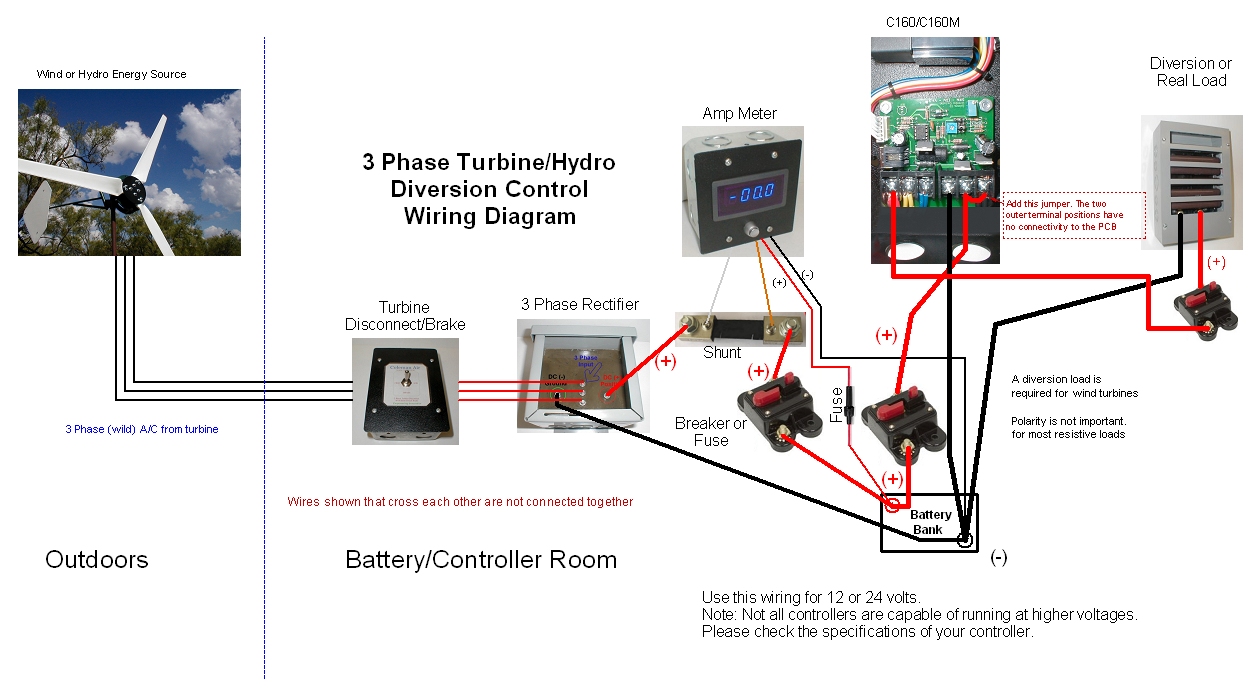

The image above shows the recommended wiring diagram for a 3 phase wind turbine or water hydro.




Click here for the same diagram using the Coleman Air C150 controller. (Page 6)

Click here for a dual solar/wind diagram using the Coleman Air C440-HVM controller. (Page 7)

But I have a single phase (or D/C) Turbine -- Click here. (Page 6.75)

See our FAQ's for lots of great information.

Available manuals for each product we sell can be downloaded from the product's detail page.
