5 Pairs of MC4 Male/Female Solar Panel connectors
5 Pairs of MC4 Male/Female Solar Panel cable connectors


Available in increments of 1
Total Percent Off Per Unit
$26.84 0% $26.8400
$51.00 5% $25.4980
$120.78 10% $24.1560
$228.14 15% $22.8140
$429.44 20% $21.4720

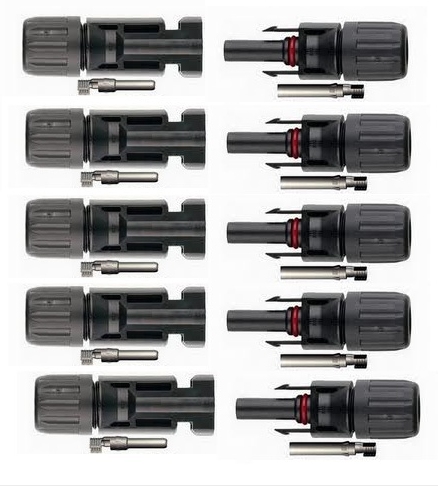

5 Pairs of MC-4 cable connectors. Both male and female, with crimp (or solder) connections.


Rated Current: 22 (2.5mm), 30A (4, 6mm)
Withstanding Voltage: 1000V DC
Contact Resistance: Less than 0.5 Mohms
Protection Class: Class II
Mechanical Features:
Temperature Range: -40 C to +90 C
Protection Degree: IP2X, unmated; IP67, mated
Unmating Force: 200 Newton
Wire Size Range: 2.5mm2, 4mm2, 6mm2 (AWG14, AWG12, AWG10)

Material Features:
Insulation Material: PC/PA, black
Contact Material: Copper, Sliver plated
Flame Class: UL94-VO or UL94-5VA
TUV certified.
