170 Amp, 12V - 600V Blocking Diode Array with Enclosure
170 Amp, 12V - 600V Blocking Diode Array with Enclosure

B170

Available in increments of 1
Quantity
Total Percent Off Per Unit
1
$104.74 0% $104.7400
2
$199.01 5% $99.5030
5
$471.33 10% $94.2660
$890.29 15% $89.0290
$1,675.84 20% $83.7920



Coleman Air




170 Amp, 12V - 600V Blocking Diode Array with Enclosure

170 Amp!! -- 600! Volt Blocking Diode array - in an industrial duty enclosure

Prevents reverse current flow (discharge), in Solar and DC wind turbines.

Works with 12 volt through 600 volt systems.









A truly needed product for today's larger scale alternate energy systems. This unit incorporates two high amperage (85A), 600V diodes, resulting in a very capable 170 amp unit. By using an insulated back plate, the diodes are fully insulated from the enclosure, preventing ground loops and lightning paths. This feature is not available in other units that we are aware of.



The two installed diodes are capable of running at 170 amps for short intervals, or 120 amps continuous at nearly any voltage your energy system might produce making it perfect for large solar arrays with high wattage outputs, and high wattage DC turbines. Please note, the diodes are rated at 85 amps each by the manufacturer (International Rectifier). Coleman Air has not tested these diodes at this level as we have no method of producing such high current flow in our lab; therefor, we are relying solely on the manufacture's testing and rating of these diodes.

Here is the manufacture datasheet on the installed diodes 85hf60.pdf



Why do I need a blocking diode? Solar panels require some form of reverse flow protection or they will discharge your batteries at night. DC wind turbines require a blocking diode or the batteries will actually attempt to turn the turbine backwards in light or no wind conditions. If you have a three phase AC output wind turbine, you do not need a blocking diode, instead you need a 3 phase rectifier, please see our store listings for three phase rectifiers. Solid state solar charge controllers often have built in reverse current flow prevention and therefor you may not need a blocking diode with some solid state charge controllers. Most diversion controllers utilizing relays and/or solenoids do not prevent reverse current flow, and thus a blocking diode is required with many diversion controllers. This blocking diode is also useful for single phase AC hydro and wind turbines.

The enclosure is heavy gauge, solid steel, rain tight enclosure - Ready to mount. -- No plastic, no junk, simple and rugged. -- There are three punch outs on bottom side of the enclosure.

Cover can be installed with or without slot for lockable latch.





How to compare this blocking diode array with others on Ebay (or anywhere)

  • Does it handle the current you require?
  • Do they include an enclosure?
  • Is the enclosure weather tight.
  • Is the enclosure and diode insulated (lightning proof)?
  • It the diode capable of shedding heat?
  • Do they include any hookup documentation?

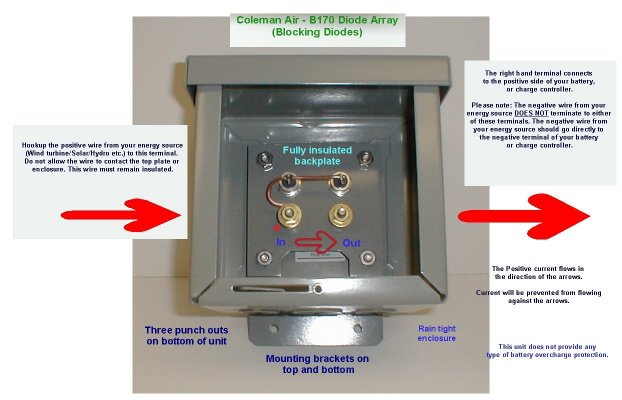

Click here to download the wiring/hookup instructions B170 Instructions.
